| Place of Origin: | CHINA |
| Brand Name: | IKP |
| Certification: | CE/UL/REACH/ROHS |
| Model Number: | EQ211405 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.008-0.023 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
Physical Dimensions
| Type | Dimension﹙mm﹚ | ||||||
| A | B | C | D | E | F | G | |
| EQ211405-060-XXX | 20.5±0.3 | 14.0±0.2 | 5.0±0.2 | 8.8±0.2 | 18.0±0.3 | 2.6±0.3 | 12.8min |
| EQ2114105-060-XXX | 20.5±0.3 | 14.0±0.2 | 10.1±0.2 | 8.8±0.2 | 18.0±0.3 | 7.7±0.3 | 12.8min |
| EQ2619075-060-XXX | 26.5±0.4 | 19.0±0.3 | 7.0±0.2 | 12.0±0.2 | 22.6±0.3 | 3.7±0.3 | 14.9min |
| EQ2619125-060-XXX | 26.5±0.4 | 19.0±0.3 | 12.4±0.2 | 12.0±0.2 | 22.6±0.3 | 9.1±0.3 | 14.9min |
| EQ3022085-060-XXX | 30.5±0.4 | 22.0±0.3 | 8.0±0.2 | 13.5±0.2 | 26.0±0.4 | 4.1±0.3 | 18.9min |
| EQ3022105-060-XXX | 30.5±0.4 | 22.0±0.3 | 10.2±0.2 | 13.5±0.2 | 26.0±0.4 | 6.3±0.3 | 18.9min |
| EQ3222085-060-XXX | 32.0±0.5 | 22.0±0.4 | 8.0±0.2 | 13.5±0.2 | 27.6±0.4 | 4.3±0.3 | 21.0min |
| EQ3222175-060-XXX | 32.0±0.5 | 22.0±0.4 | 17.2±0.2 | 13.5±0.2 | 27.6±0.4 | 13.5±0.3 | 21.0min |
| EQ3626095-060-XXX | 36.0±0.5 | 26.0±0.4 | 9.0±0.3 | 14.4±0.3 | 32.0±0.4 | 5.0±0.3 | 21.9min |
| EQ3626175-060-XXX | 36.0±0.5 | 26.0±0.4 | 17.4±0.3 | 14.4±0.3 | 32.0±0.4 | 13.4±0.3 | 21.9min |
| EQ4228105-060-XXX | 41.5±0.7 | 28.0±0.4 | 10.0±0.3 | 14.9±0.3 | 36.5±0.5 | 5.5±0.3 | 26.8min |
| EQ4228205-060-XXX | 41.5±0.7 | 28.0±0.4 | 19.9±0.3 | 14.9±0.3 | 36.5±0.5 | 15.4±0.3 | 26.8min |
| EQ503213-060-XXX | 50.0±0.7 | 32.0±0.4 | 13.0±0.4 | 20.0±0.3 | 44.0±0.5 | 7.5±0.3 | 32.3min |
| EQ503225-060-XXX | 50.0±0.7 | 32.0±0.4 | 25.0±0.4 | 20.0±0.3 | 44.0±0.5 | 19.5±0.4 | 32.3min |
AL Value & Efective Parameters of EQ-Cores
| Type |
Le (mm) |
Ae (mm2) |
Ve (mm3) |
AL(nH/N2) | ||
| 26 | 40 | 60 | ||||
| EQ211405-060-XXX | 32.8 | 60.8 | 1994 | 60 | 93 | 140 |
| EQ211410-060-XXX | 53.2 | 60.8 | 3235 | 37 | 57 | 86 |
| EQ261907-060-XXX | 42.3 | 119.8 | 5068 | 92 | 142 | 213 |
| EQ261912-060-XXX | 63.9 | 119.8 | 7655 | 61 | 94 | 141 |
| EQ302208-060-XXX | 50.9 | 143.1 | 7290 | 92 | 142 | 212 |
| EQ302210-060-XXX | 58.9 | 143.1 | 8429 | 80 | 122 | 183 |
| EQ322208-060-XXX | 51.1 | 152.3 | 7783 | 97 | 150 | 225 |
| EQ322217-060-XXX | 87.9 | 152.3 | 13387 | 56 | 87 | 130 |
| EQ362609-060-XXX | 61.1 | 180.8 | 11047 | 96 | 149 | 223 |
| EQ362617-060-XXX | 94.7 | 180.8 | 17122 | 62 | 96 | 144 |
| EQ422810-060-XXX | 75.6 | 199.7 | 15097 | 86 | 133 | 199 |
| EQ422820-060-XXX | 115.2 | 199.7 | 23005 | 57 | 87 | 131 |
| EQ503213-060-XXX | 85.4 | 314.1 | 26824 | 120 | 185 | 277 |
| EQ503225-060-XXX | 133.4 | 314.1 | 41901 | 77 | 118 | 178 |
Note: Besides the cores with the same A & B dimensions and two diferent C dimensions in the above table which tools are available, we also can provide the cores with the C dimension in between the two values according the the customer request.
Advantages:

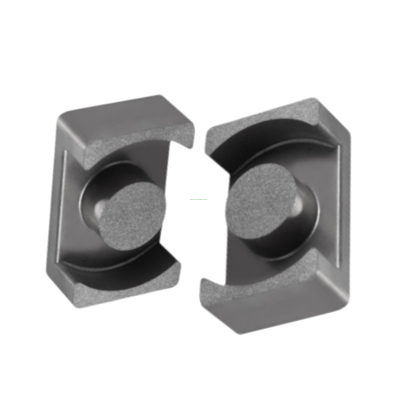

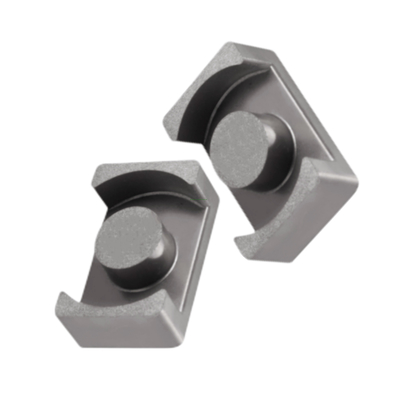

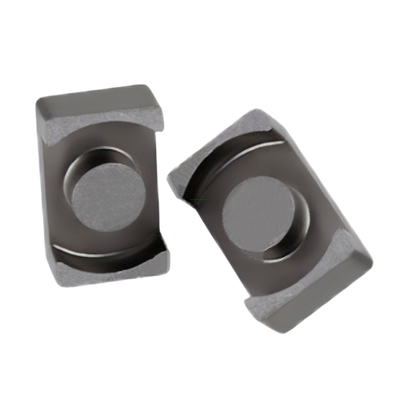

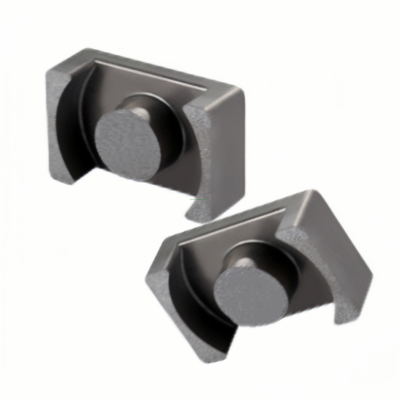

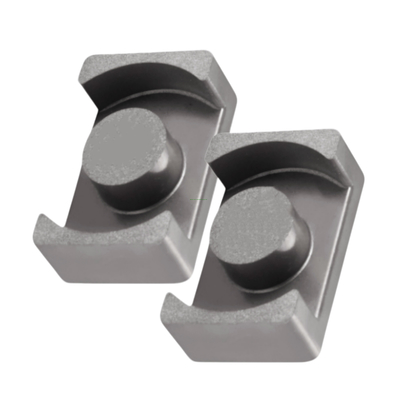

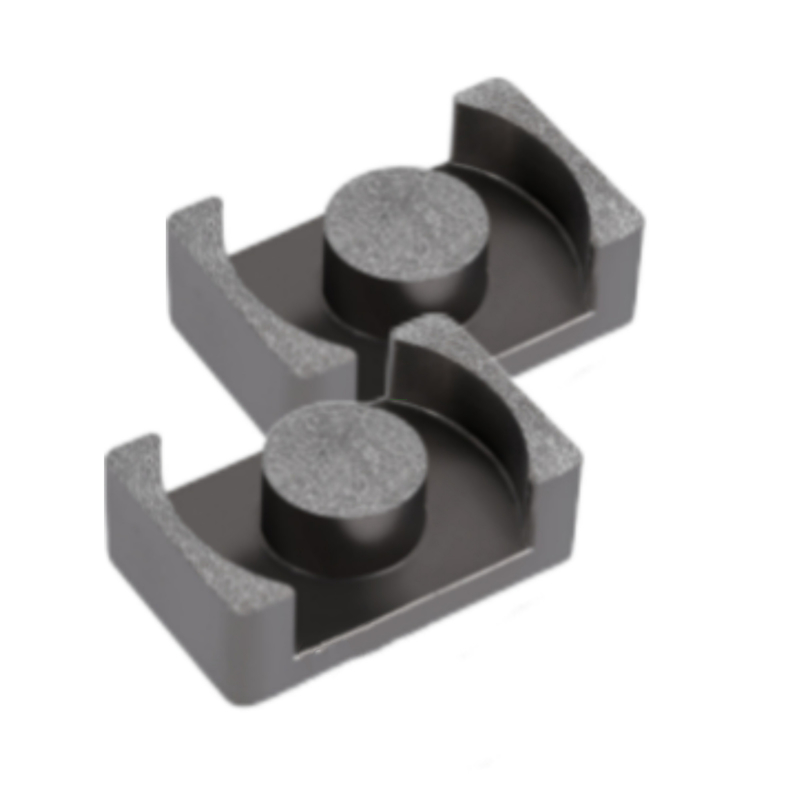

High Magnetic Permeability: EQ type metal magnetic powder core has a high magnetic permeability, which can effectively gather and conduct magnetic lines of force. This characteristic enables it to perform excellently in electronic devices such as inductors and transformers, improving the efficiency and performance of the equipment.
Low Loss: The loss of the EQ type metal magnetic powder core is relatively low, which means it can reduce energy loss during high-frequency operation. This is of great significance for improving the energy efficiency and reliability of the equipment.
Good Temperature Stability: This type of magnetic powder core can maintain relatively stable magnetic properties at different temperatures, enabling it to work reliably over a wide temperature range. Whether in low or high temperature environments, the EQ type metal magnetic powder core can maintain stable performance, thereby ensuring the normal operation of the equipment.
High Saturation Magnetic Induction Intensity: The EQ type metal magnetic powder core has a high saturation magnetic induction intensity, which means it can maintain magnetism under a large magnetic field strength. This gives it an advantage in applications that need to withstand strong magnetic fields, such as motors and generators.
Application Fields:
Power Electronics Field: Due to its high magnetic permeability and low loss characteristics, the EQ type metal magnetic powder core is widely used in electronic devices such as power filters, energy storage inductors, and transformers. These devices require efficient magnetic materials to improve power conversion efficiency and equipment performance, making the EQ type metal magnetic powder core an ideal choice to meet these needs.
Communication Field: In communication equipment such as base stations and switches, the EQ type metal magnetic powder core can be used to make inductors, transformers, and other components. These components are crucial for signal transmission and processing, and the high magnetic permeability and low loss characteristics of the EQ type metal magnetic powder core help improve the transmission efficiency and stability of communication equipment.
New Energy Field: With the rapid development of new energy technologies, the EQ type metal magnetic powder core has also been widely applied in photovoltaics, energy storage, and other fields. For example, in photovoltaic inverters, the EQ type metal magnetic powder core can be used to make filter inductors to improve the efficiency and stability of the inverter; in energy storage systems, it can be used to make energy storage inductors to achieve efficient energy storage and release.
