| Place of Origin: | CHINA |
| Brand Name: | IKP |
| Certification: | CE/UL/REACH/ROHS |

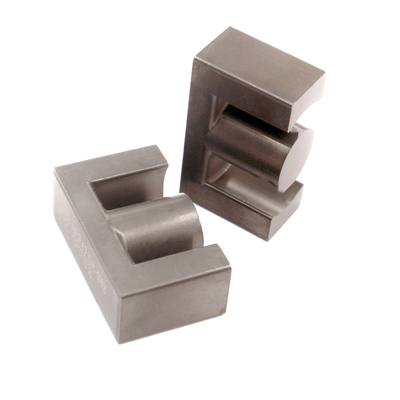

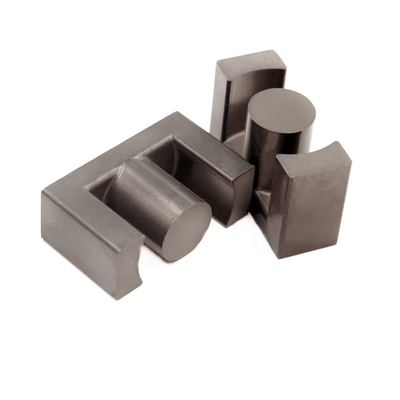

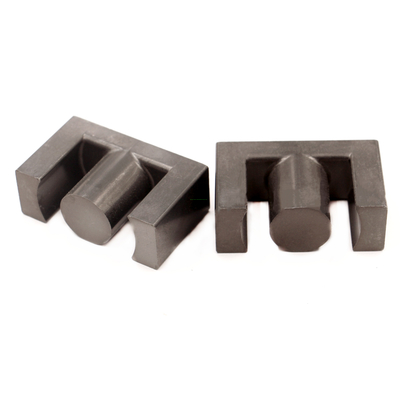

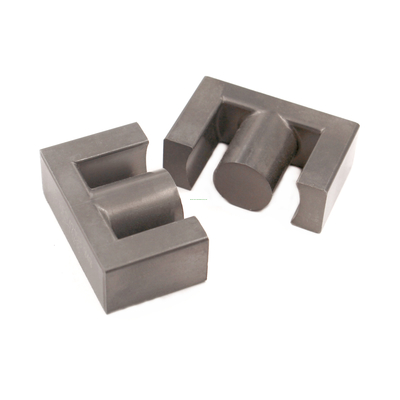

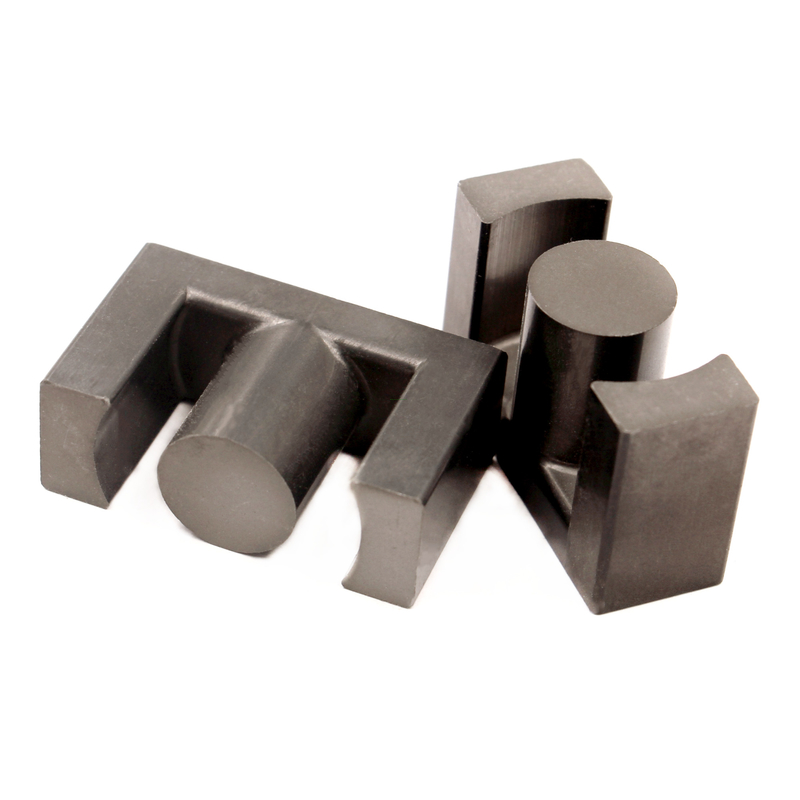

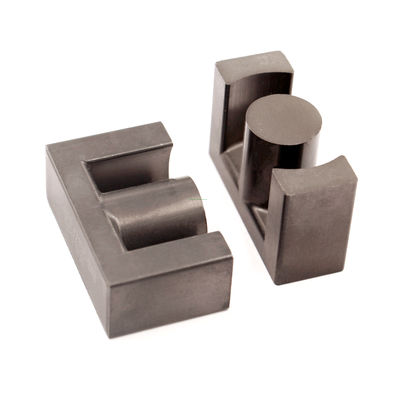

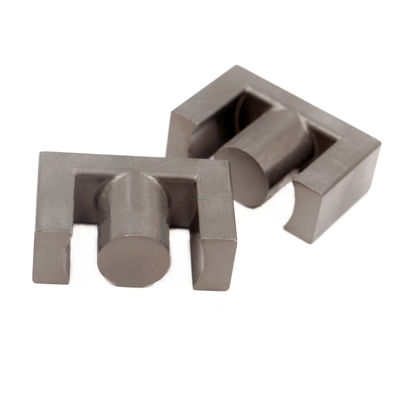

| Model Number: | EC441525 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.05-0.1 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
Physical Dimensions
| Part Number | Dimension ﹙mm﹚ | |||||
| A | B | C | D | E | F | |
| EC411324-060-XXX | 41.0±0.7 | 30.0MIN | 13.1+0/-0.4 | 12.9±0.2 | 16.9+0.6 | 24.2±0.3 |
| EC421521-060-XXX | 42.0±0.5 | 30.5MIN | 15.2±0.3 | 15.2±0.3 | 15.4±0.3 | 21.4±0.3 |
| EC441525-060-XXX | 44.0±0.6 | 32.8MIN | 14.8±0.3 | 14.8±0.3 | 19.7±0.3 | 25.3±0.3 |
| EC451818-060-XXX | 45.0±1.0 | 33.0+1.6/-0 | 18.0+0/-0.8 | 18.0+0/-0.8 | 10.5+0.5 | 17.5+0/0.4 |
| EC461523-060-XXX | 45.9±0.5 | 34.5MIN | 15.3±0.3 | 15.3±0.3 | 17.4±0.2 | 23.4±0.2 |
| EC471523-060-XXX | 47.0±0.4 | 33.0MIN | 15.0±0.3 | 15.0±0.3 | 16.4±0.3 | 23.0±0.3 |
| EC481818-060-XXX | 48.0±1.0 | 36MIN | 17.6±0.4 | 17.6±0.4 | 11.45±0.3 | 18.0±0.2 |
| EC491727-060-XXX | 49.0±0.6 | 37MIN | 17.2±0.3 | 17.2±0.3 | 18.7±0.3 | 26.5±0.3 |
| Part Number | Le(cm) | Ae(cm2) | Ve(cm3) | AL(nH/N2) | ||
| 26μ | 40μ | 60μ | ||||
| ECF411324-060-XXX | 10.60 | 1.44 | 15.26 | 44 | 68 | 102 |
| ECF421521-060-XXX | 9.75 | 1.86 | 18.14 | 62 | 96 | 144 |
| ECF441525-060-XXX | 11.70 | 172 | 20.12 | 48 | 74 | 111 |
| ECF451818-060-XXX | 8.15 | 2.33 | 18.99 | 93 | 144 | 215 |
| ECF461523-060-XXX | 11.00 | 1.84 | 20.24 | 55 | 84 | 126 |
| ECF471523-060-XXX | 10.39 | 1.91 | 19.84 | 60 | 92 | 139 |
| ECF481818-060-XXX | 8.71 | 2.34 | 20.38 | 88 | 135 | 202 |
| ECF491727-060-XXX | 11.90 | 2.36 | 28.08 | 65 | 100 | 149 |
The advantages of EC-type metal powder magnetic materials include:
Good magnetic shielding effect: It can effectively reduce the interference of the external magnetic field on the circuit, and also prevent the internal magnetic field from affecting the outside world, improving the electromagnetic compatibility of the equipment.
Small distributed capacitance: In high-frequency applications, the smaller distributed capacitance can reduce the impact of the capacitive effect on the performance of the circuit, which is beneficial for the rapid transmission of signals and the efficient conversion of energy.
Low transmission attenuation: The energy loss of the signal in the transmission process is small, which can improve the transmission efficiency and quality of the signal, and is suitable for occasions with high requirements for signal transmission.
High inductance: It has a high inductance and can achieve a large inductance value under a small volume, which is beneficial for the miniaturization and lightweight design of the equipment.
Small leakage inductance: It can reduce unnecessary leakage flux, improve the efficiency and energy utilization of the magnetic circuit, and make the performance of the circuit more stable and reliable.
Uniform magnetic field distribution: The magnetic field distribution inside the magnetic core can be more uniform, reducing the situation where the local magnetic field is too strong or too weak, and improving the working stability and consistency of the magnetic core.
The skeleton with multiple terminals is easy to design multi-output transformers: The skeleton is equipped with multiple terminals, which is convenient for designing multi-output transformers to meet the needs of different circuits.
The application fields of EC-type metal powder magnetic materials include:
Broadband transformers: Used in communication equipment, network equipment, etc., for the transmission and transformation of broadband signals, such as program-controlled exchange terminals, routers, etc.
Inductors: As inductive elements, they are widely used in various electronic equipment for filtering, energy storage, delay, and other circuits, such as power filter inductors, oscillating inductors, etc.
Isolation transformers: They can achieve signal isolation and transmission, and also have a certain voltage transformation function. They are often used in the input and output stages of audio, video, and other equipment, as well as in medical equipment, precision instruments, and other where high signal quality and safety are required.
Matching transformers: Used to achieve impedance matching between different circuits, improve the transmission efficiency and quality of signals, and are commonly found in antenna systems, audio amplifiers, and other equipment.
