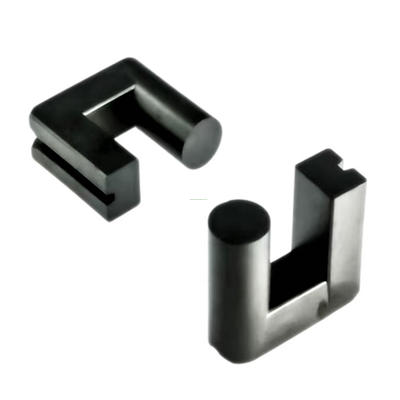

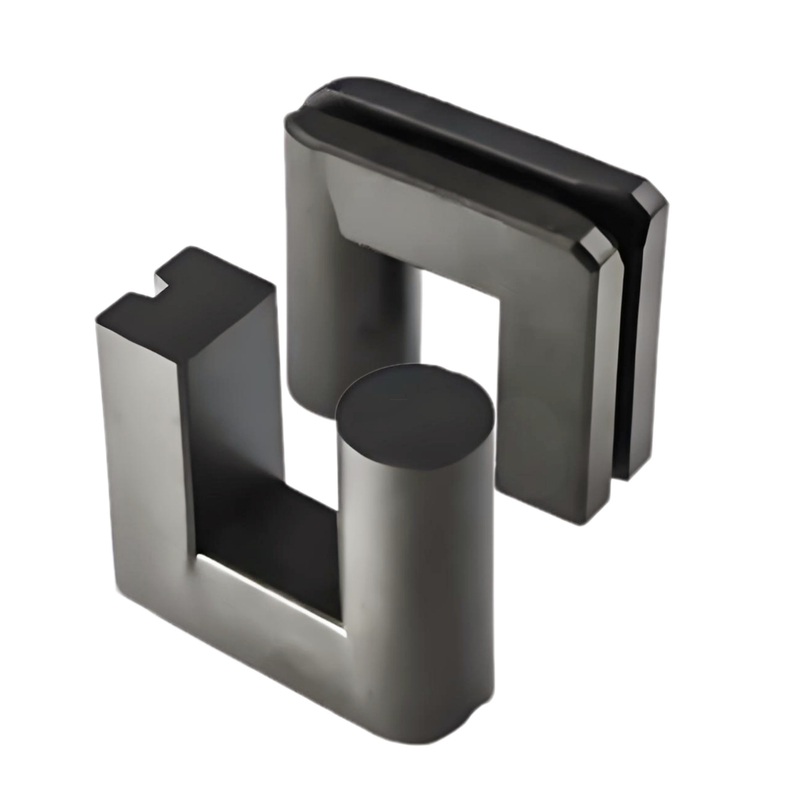

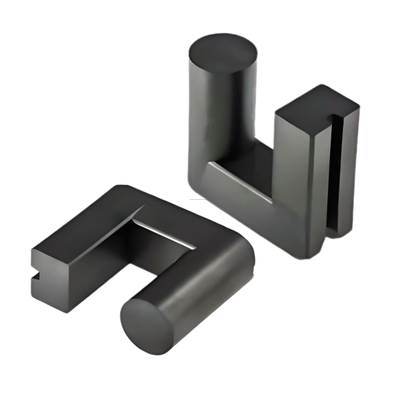

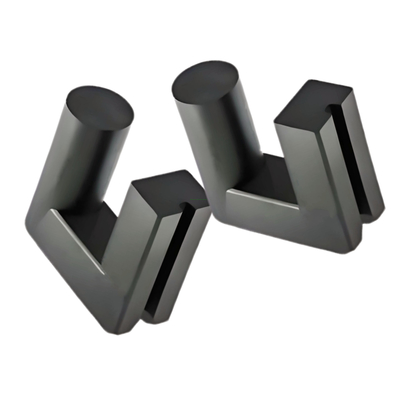

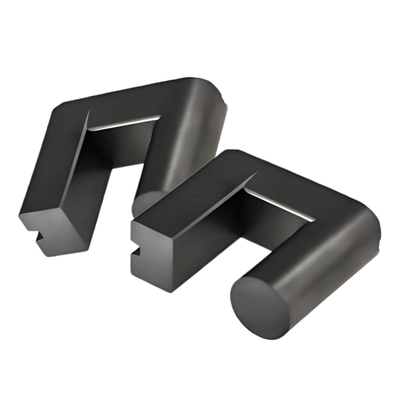

| Place of Origin: | CHINA |
| Brand Name: | IKP |
| Certification: | CE/UL/REACH/ROHS |
| Model Number: | UYF37 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.03-0.1 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
High Magnetic Permeability: UYF-type MnZn power cores have a high magnetic permeability, which can effectively convert the conversion efficiency between electrical energy and magnetic energy. This makes them excellent in applications that require efficient energy transmission and conversion.
Low Coercivity: These cores have low coercivity, meaning they can quickly achieve magnetization and demagnetization under the action of an external magnetic field. This characteristic helps improve the response speed and efficiency of devices.
Good Temperature Stability: UYF-type MnZn power cores can maintain stable magnetic performance over a wide temperature range. This is very important for electronic devices that need to work under various environmental conditions.
High Saturation Magnetic Induction Strength: These cores have a high saturation magnetic induction strength, which allows for a large magnetic induction strength in a smaller volume. This helps reduce the size and weight of devices.
Low Cost: Compared to other high-performance core materials, UYF-type MnZn power cores have relatively low manufacturing costs. This makes them a cost-effective choice for many applications.
Electronic Products: UYF-type MnZn power cores are commonly used in transformers, inductors, filters, and other components in electronic products. These components play important roles in power conversion and signal processing.
Specific applications include power adapters and filter inductors in consumer electronics such as TVs, monitors, audio equipment, and gaming consoles.Communication Equipment: In communication equipment such as mobile phones and base stations, UYF-type MnZn power cores can be used in RF chokes, power inductors, and other components. These components are crucial for ensuring stable signal transmission and normal operation of the equipment.
Power Electronics: UYF-type MnZn power cores are also suitable for transformers, inductors, and other components in the field of power electronics. These components have broad application prospects in new energy fields such as electric vehicles and solar power generation equipment.
New Energy Sector: With the rapid development of new energy technologies, the application of UYF-type MnZn power cores in solar, wind, and other power generation equipment is becoming increasingly widespread. They can be used in transformers, inductors, and other components to achieve energy conversion and storage functions.
Fig.1 Fig.2
| Specification | Figure | Dimension(mm) | Effective parameter | Inductor coefficient AL(nH/N2) | Weight | |||||||||
| A | B/I | C/C1/C2 | D/D1 | D2/G | E | F/H | Ae(mm2) | Le(mm) | Ve(mm3) | BP44 | BP95 | (grams/pair) | ||
| UYF37 | 1 | 37.2+0.3-0.1 | B:32.2±0.1 | 16.2±0.1 | 16±0.15 | 6±0.2 | 15.0±0.5 | F:26.3±0.15 J:10.8±0.15 |
110.3 | 120.1 | 13247.03 | 2400±25% | 2900±25% | 91.2 |
| I:16.7±0.1 | ||||||||||||||
| UYF39 | 1 | 39.05+0.8-0.3 | B:30.0±0.15 | 16.2±0.05 | 16.1±0.25 | 6.1±0.25 | 16.70min | F:24.0±0.15 J:10.45±0.15 |
110.5 | 119.3 | 13182.65 | 2600±26% | 3100±26% | 92.3 |
| I:16.45±0.15 | ||||||||||||||
| UYF42 | 2 | 42.00±0.5 | B:5.30±0.2 | 18±0.3 | 18±0.3 | 9±0.2 | 14.40min | F:29±0.2 J:8.5±0.2 |
169.52 | 138.8 | 23529.38 | 3600±25% | 5600±25% | 136.1 |
| I:16.5±0.2 | ||||||||||||||
Note:
The test conditions for the AL value are: 1KHz, 0.3V, and 10Ts.
The above are the standard specifications of our company, and we can design according to the special requirements of customers.
