| Model Number: | ES73.8 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.008-0.23 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
Advantages
High Saturation Magnetic Flux Density: Manganese-zinc power magnetic strips have a high saturation magnetic flux density, allowing them to generate a strong magnetic field within a smaller volume. This is crucial for enhancing the performance and efficiency of electronic devices.
Low Loss: The loss of manganese-zinc power magnetic strips is relatively low, which means that they can utilize electrical energy more effectively during the energy conversion process, reducing energy loss. This characteristic is of great significance for improving the energy efficiency ratio of devices and reducing operating costs.
Good Temperature Stability: Manganese-zinc power magnetic strips exhibit good stability within a certain temperature range, maintaining stable magnetic properties at different temperatures. This enables them to work reliably under various environmental conditions, improving the adaptability and reliability of devices.
High Curie Temperature: Manganese-zinc power magnetic strips have a high Curie temperature (Curie point), meaning their magnetism is relatively stable with temperature changes. This allows them to maintain good magnetic performance in high-temperature environments, making them suitable for various high-temperature application scenarios.
Moderate Mechanical Strength: Manganese-zinc power magnetic strips have a certain mechanical strength and are not prone to cracking or deformation, facilitating processing and installation. This improves their durability and reliability, reducing the risk of damage caused by mechanical stress.
Application Fields
Power Electronics Equipment: Manganese-zinc power magnetic strips are widely used in components such as inductors and transformers in power electronics equipment. These components are indispensable parts of power electronics equipment and are used to achieve functions such as energy storage, conversion, and transmission.
High-Frequency Applications: Manganese-zinc power magnetic strips are also suitable for high-frequency application scenarios such as high-frequency filters and pulse transformers. In these applications, they can provide stable high-frequency performance and low loss.
Communication Equipment: Manganese-zinc power magnetic strips are also used in components such as antennas and radio frequency devices in communication equipment. These components require high-performance magnetic materials to support their efficient signal transmission and processing capabilities.

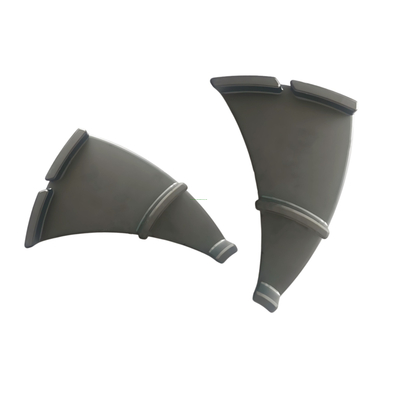

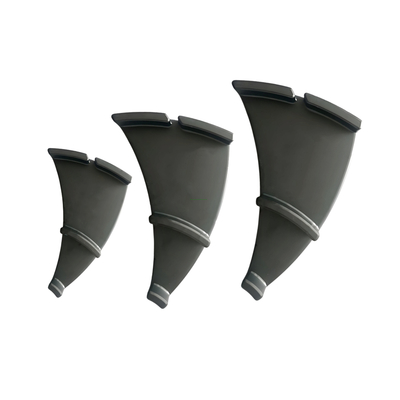

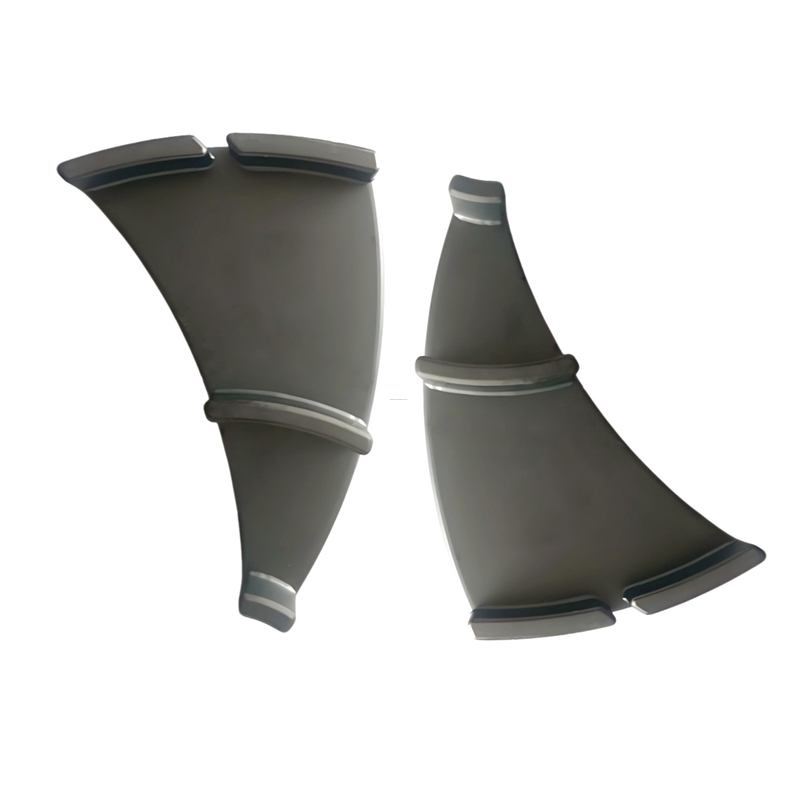

Fig.1 Fig.2 Fig.3
| Specification | Figure | Dimension(mm) | Compression strength | Q-value | Inductor coefficient AL(nH/N2) | Weight | ||||||
| A | B | C1 | C2 | D1/D2/D3 | F | B-F | (N) | Q | BP40 | (grams/pair) | ||
| ES73.3 | 1 | 73.3±0.6 | 14±0.2 | 10.8±0.5 | 48±0.5 | 4±0.2 | 9±0.2 | / | / | / | / | 67.5 |
| ES73.8 | 2 | 73.8±0.6 | 11.7±0.2 | / | / | 3.6+0.2 | 7±0.2 | / | / | / | / | 57.2 |
| ES80.8 | 2 | 80.8+0.6/-0.4 | 12.5±0.2 | / | / | 4±0.2 | / | 4.7-5 | / | / | / | 70.6 |
| ES85.2 | 3 | 85.2±0.8 | 12±0.3 | / | / | 4±0.2 | 7±0.3 | / | / | / | / | 78.5 |
Note:
The test conditions for the AL value are: 1KHz, 0.3V, and 10Ts.
The above are the standard specifications of our company, and we can design according to the special requirements of customers.
