| Place of Origin: | CHINA |
| Brand Name: | IKP |
| Certification: | CE/UL/REACH/ROHS |
| Model Number: | U60.5*13.9*15.4 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.008-0.18 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |

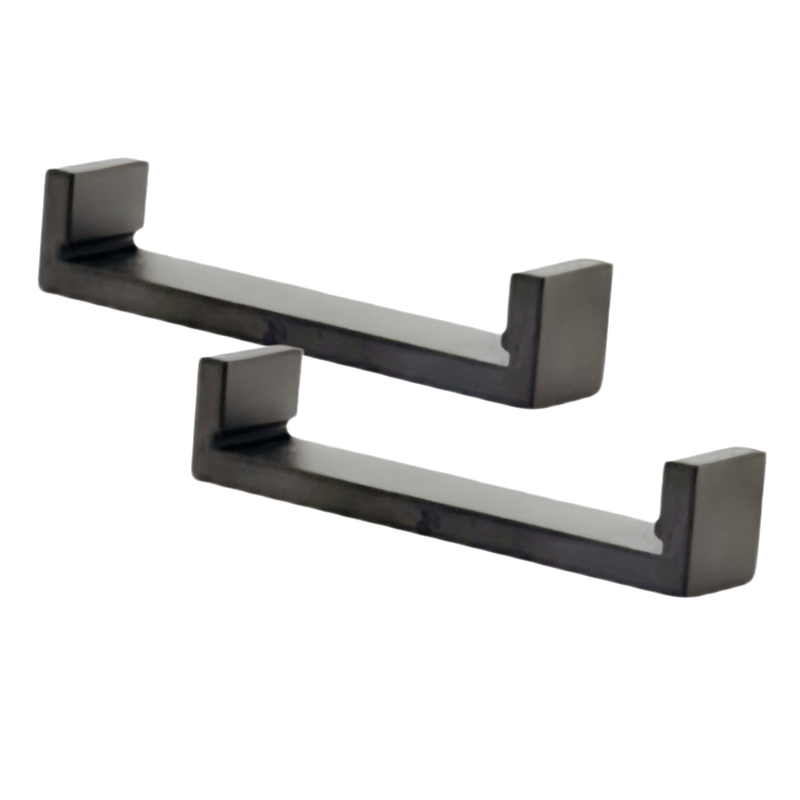

Advantages:
High Magnetic Permeability: U-shaped MnZn power cores typically exhibit high magnetic permeability, which helps to enhance the efficiency and performance of devices.
Low Loss: Under high-frequency and high flux density operating conditions, U-shaped MnZn power cores have lower power losses, contributing to reduced operational costs of equipment.
Good Stability: U-shaped MnZn power cores demonstrate excellent temperature stability and temporal stability, maintaining consistent performance under various environmental conditions.
High Resistivity: Their resistivity is significantly higher than that of metallic magnetic materials, suppressing the generation of eddy currents in circuits, making them more suitable for high-frequency applications.
Mechanical Strength: The U-shaped design imparts a certain degree of mechanical strength to the core, facilitating installation and usage.
Low Manufacturing Cost: The use of ceramic processes allows for easy fabrication into various shapes and sizes of magnetic rings and cores, with relatively low manufacturing costs.
Application Areas:
Switching Power Supply Transformers: Due to their low loss and high magnetic permeability characteristics, U-shaped MnZn power cores are widely used in switching power supply transformers to improve power conversion efficiency.
Power Filters: In power filters, U-shaped MnZn power cores effectively suppress high-frequency noise, enhancing the stability of power output.
Inductors: Owing to their high magnetic permeability and low loss characteristics, U-shaped MnZn power cores are also commonly employed in the manufacture of inductors, extensively used in electronic devices for functions such as filtering, energy storage, and more.
Electronic Equipment: U-shaped MnZn power cores are utilized in the power converters and external power adapters of devices such as LCD displays and PDP displays, to enhance power conversion efficiency and device performance.

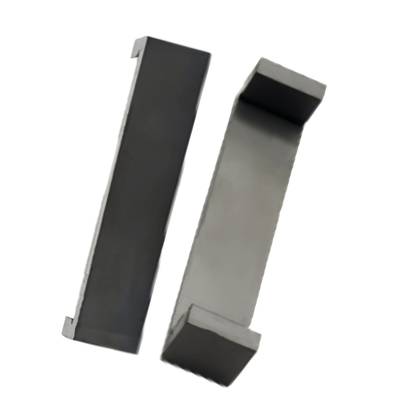

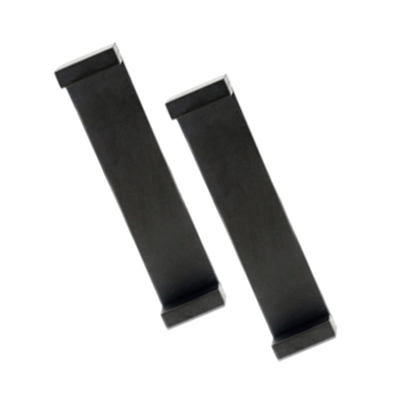

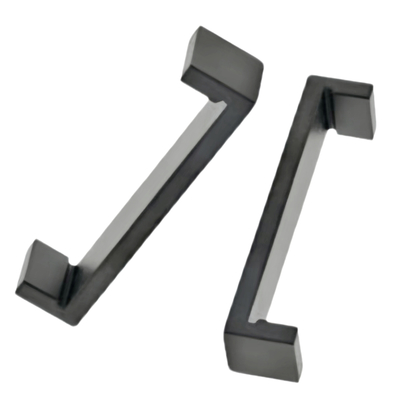

Fig.1 Fig.2 Fig.3

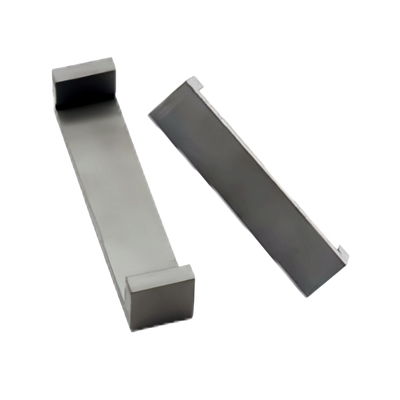

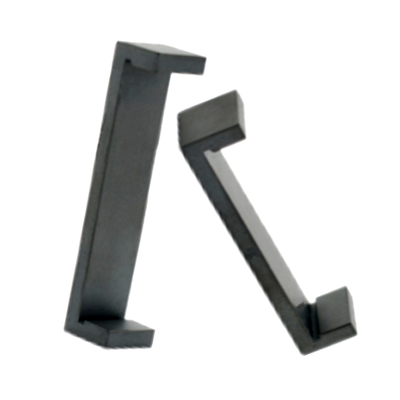

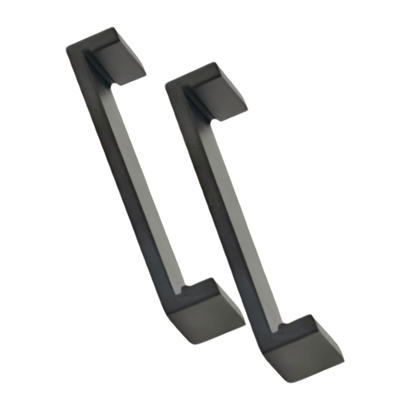

Fig.4 Fig.5 Fig.6
| Specification | Figure | Dimension(mm) | Compression strength(N) | Q-value | Inductor coefficient AL(nH/N2) | Weight | |||||||
| A | B | C | D | D1 | E | H | BP40/PC95 | (grams/pair) | |||||
| U40.5×15×13 | 1 | 40.1±0.4 | 15±0.2 | 13±0.2 | 4.5±0.2 | / | / | 5±0.2 | ≥160 | ≥1.1 | ≥500 | 18.2 | |
| U48.4×13.2×14.8 | 1 | 48.4±0.5 | 14.8±0.2 | 13.2±0.2 | 4.5±0.2 | / | / | / | ≥160 | ≥1.5 | ≥600 | 19.9 | |
| U55.5×13.2×16 | 1 | 55.5±0.5 | 16±0.3 | 13.2±0.2 | 4.5±0.2 | / | / | / | ≥160 | ≥1.6 | ≥690 | 22.7 | |
| U60×13.2×15 | 2 | 60±0.5 | 15±0.2 | 13.2±0.2 | 4.5±0.2 | / | / | 4.5±0.2 | ≥160 | ≥1.8 | ≥700 | 23 | |
| U60.5×12.5×19.3 | 2 | 60.5±0.7 | 19.3±0.2 | 12.5±0.2 | 4.5±0.2 | / | / | 5±0.2 | ≥200 | ＞1.2 | ＞720 | 25.4 | |
| U60.5×13.0×15.4 | 2 | 60.5±0.5 | 15.4±0.15 | 13±0.2 | 4.5±0.2 | 5.3±0.1 | ≥200 | ＞1.85 | ＞710 | 25.5 | |||
| U63.8×15×16 | 3 | 63.6±0.4 | 16±0.2 | 14.9±0.2 | / | / | 52.5min | 5.3±0.2 | ≥200 | ≥2 | ≥790 | 31.9 | |
| U73×13.2×14 | 2 | 73±0.7 | 14±0.2 | 13.2±0.2 | 4.5±0.1 | 4.5±0.1 | ≥160 | ≥1.5 | ≥720 | 25.8 | |||
| U78.2×13.2×14.8 | 1 | 78.2±0.5 | 14.8±0.2 | 13.2±0.2 | 4.5±0.2 | / | / | / | ≥160 | ≥1.8 | ≥800 | 28.3 | |
| U78.2×18.8×12.5 | 5 | 78.2±0.7 | 18.8±0.3 | 12.5±0.2 | 4.9±0.2 | 4.5±0.2 | / | 6±0.1 | ≥200 | ≥1.9 | ≥860 | 31.2 | |
| U78×9.0×18.0 | 1 | 78±0.7 | 9±0.3 | 18±0.3 | 5±0.2 | / | / | 4.5±0.2 | ≥160 | ≥1.8 | ≥800 | 25.8 | |
| U78.3×24×14 | 6 | 78.3±0.4 | 24±0.3 | 14±0.3 | 10±0.25 | / | 67.3±0.4 | 10±0.25 | / | / | / | 74.5 | |
| U79.1×16.0×4.5 | 4 | 79.1±0.6 | 16±0.2 | / | 5.8±0.2 | 4.5±0.2 | / | 4.5±0.2 | ≥160 | ≥2.5 | ≥950 | 45 | |
| U92*22*10 | 1 | 92±1 | 22±0.3 | 10±0.3 | 10±0.3 | 10±0.3 | / | / | / | / | / | 53.9 | |
Note:
The test conditions for the AL value are: 1KHz, 0.3V, and 10Ts.
The above are the standard specifications of our company, and we can design according to the special requirements of customers.
