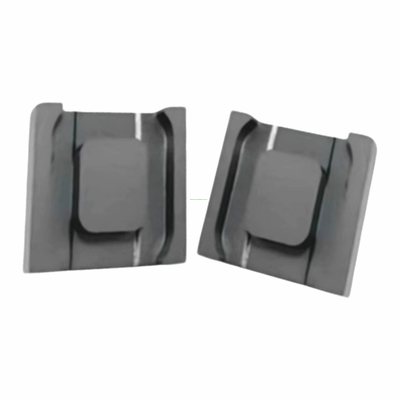

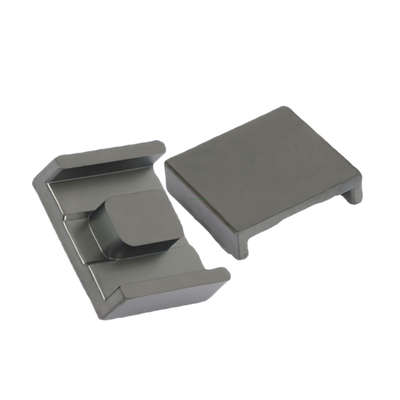

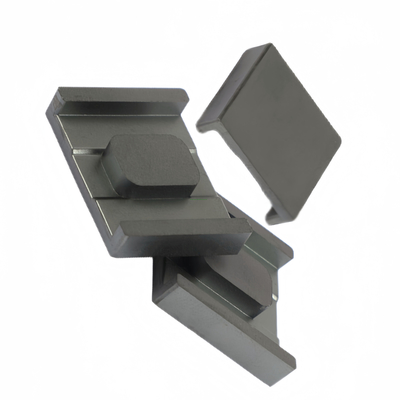

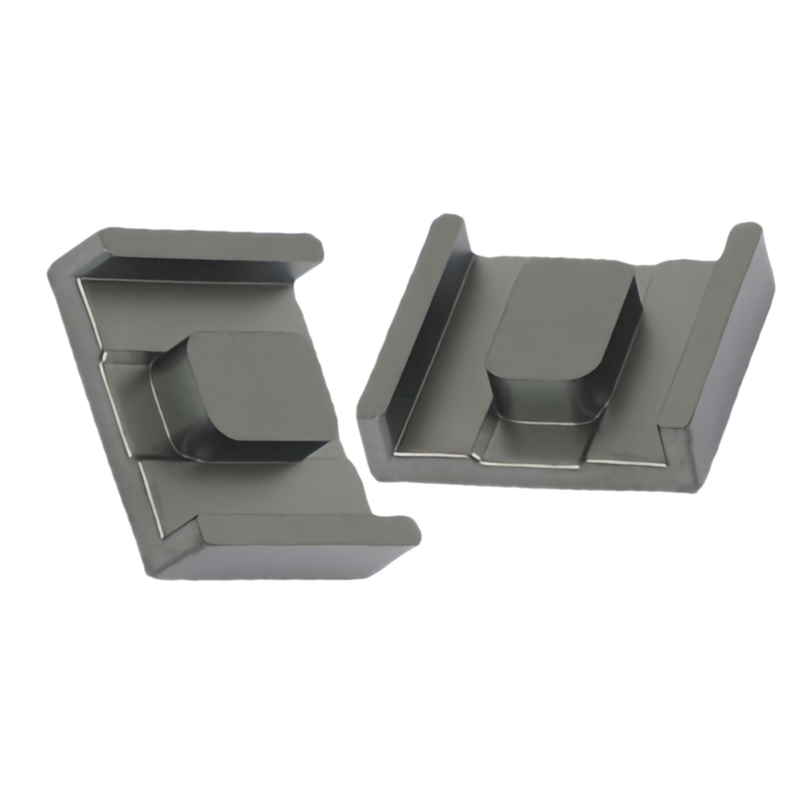

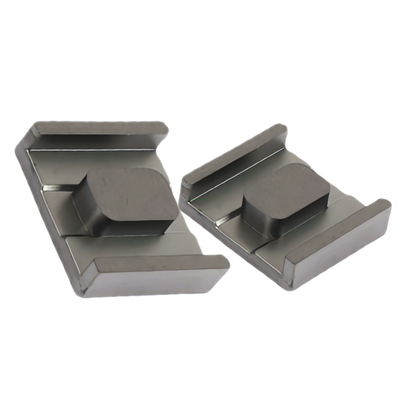

| Place of Origin: | CHINA |
| Brand Name: | IKP |
| Certification: | CE/UL/REACH/ROHS |
| Model Number: | EED34/20 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.008-0.23 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
High Magnetic Permeability: It possesses a high magnetic permeability, which allows it to gather and guide the magnetic field more effectively, thereby enhancing the conversion efficiency of electromagnetic energy.
Low Loss: Within the operating frequency range, the loss of the EED-type MnZn power core is relatively low. This means that under the same operating conditions, its energy loss is smaller, which can improve the efficiency and performance of the equipment.
High Curie Temperature: The Curie temperature is relatively high, and it can still maintain good magnetic properties at higher temperatures, having good thermal stability and being suitable for some high-temperature working environments.
Good Temperature Characteristics: The loss is negatively related to the temperature, which can prevent the continuous rise of temperature.
Convenient Winding and Wiring: It has a large lead space, which is convenient for winding and wiring, and is beneficial for automated assembly in the production process, improving production efficiency.
Wide Working Frequency Range: It can maintain good performance within a wide frequency range, meeting the needs of different application scenarios.
High Output Power: It can withstand relatively large power, making it suitable for high-power equipment and circuits.
Switching Power Supply: It is one of the commonly used core materials in switching power supplies, used for energy storage, filtering, and choke functions, which can improve the conversion efficiency and stability of switching power supplies.
Transmission Transformer: In the data transmission and signal transmission of communication, networking and other fields, it serves as the core of the transmission transformer to ensure stable signal transmission.
Electronic Ballast: It is used in the electronic ballast of lighting equipment to help stabilize the current and extend the service life of the lamp.
Household Appliances: In household appliances such as TVs, audio equipment, and microwave ovens, it plays the roles of filtering, choking, and energy storage, improving the performance and safety of the appliances.
Computer Power Supply: It provides a stable power supply for computers, ensuring their normal operation.
Energy-saving Lamps: As a key component in energy-saving lamps, it improves the light efficiency and lifespan of the lamps.
Communication Equipment: It is used for filtering, anti-electromagnetic interference and other functions in communication equipment to improve communication quality.
Office Automation Equipment: In office automation equipment such as printers and copiers, it is used for motor driving, power filtering and other functions.
Military Products, OA Equipment and Electronic Instruments: It is also widely used in military equipment, office automation equipment, and electronic instruments that require high core performance.
Fig.1 Fig.2 Fig.3
Fig.4 Fig.5
| Specification | Figure | Dimension(mm) | Effective parameter | Inductor coefficient AL(nH/N2) | Weight | ||||||||||
| A | B | C1 | C2 | D | E1 | E2 | F | Ae(mm2) | Le(mm) | Ve(mm3) | BP44 | BP95 | (grams/pair) | ||
| EED19/8/12 | |||||||||||||||
| EED21/10 | 1 | 21.00±0.40 | 4.85±0.15 | 18.60±0.40 | 10.50±0.20 | 9.00±0.20 | 16.24min | 13.30min | 2.35±0.20 | 91.80 | 25.90 | 2377.6 | 6800±25% | 8000±25% | 16.50 |
| EED22/14.5 | 5 | 22.00±0.40 | 7.25±0.15 | 14.0±0.30 | 12.0±0.20 | 7.00±0.20 | 17.30min | 14.40min | 4.70±0.20 | 72.00 | 38.00 | 2736.0 | 3600±25% | 4500±25% | 15.60 |
| EED32/13 | |||||||||||||||
| EED33/17S | 2 | 33.80±0.50 | 8.35±0.15 | 16.50±0.20 | 8.40±0.15 | 8.45±0.15 | 28.8±0.5 | _ | 5.85±0.15 | 76.70 | 52.60 | 4038.0 | 3600±25% | 4500±25% | 25.80 |
| EED34/20 | 3 | 34.00±0.65 | 10.15±0.20 | 37.40±0.60 | 23.20±0.40 | 9.70±0.30 | 29.40min | 23.30min | 7.30±0.20 | 202.5 | 59.50 | 12030.9 | 6800±25% | 8500±25% | 72.20 |
| EED36/17S | 2 | 36.80±0.50 | 8.20±0.15 | 18.50±0.20 | 9.60±0.15 | 9.60±0.15 | 31.8±0.5 | _ | 5.70±0.15 | 92.40 | 57.20 | 5288.0 | 4000±25% | 5000±25% | 30.90 |
| EED38/14 | 4 | 38.20±0.40 | 7.10±0.15 | 14.00±0.30 | _ | 6.00±0.20 | 32.2+0.7/-0.3 | _ | 4.30±0.15 | 74.31 | 54.67 | 4062.5 | 3500±25% | 4400±25% | 23.40 |
Note:
The test conditions for the AL value are: 1KHz, 0.3V, and 10Ts.Note:
The above are the standard specifications of our company, and we can design according to the special requirements of customers.
