| Place of Origin: | CHINA |
| Brand Name: | IKP |
| Certification: | CE/UL/REACH/ROHS |
| Model Number: | EPC13.6 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.008-0.23 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |

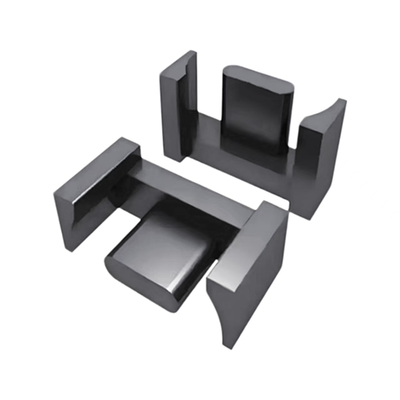

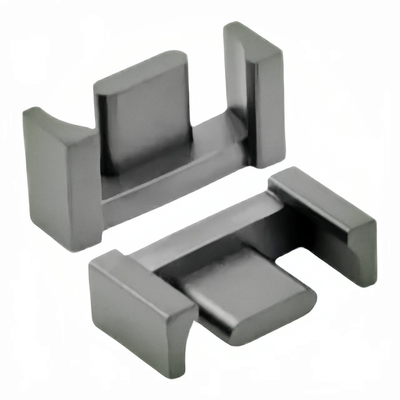

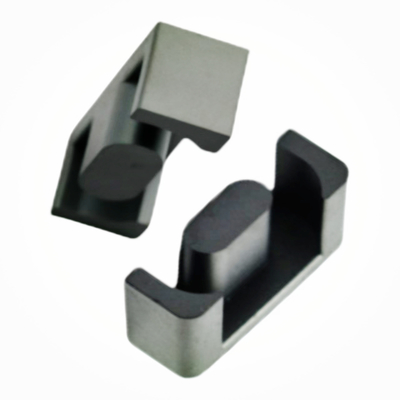

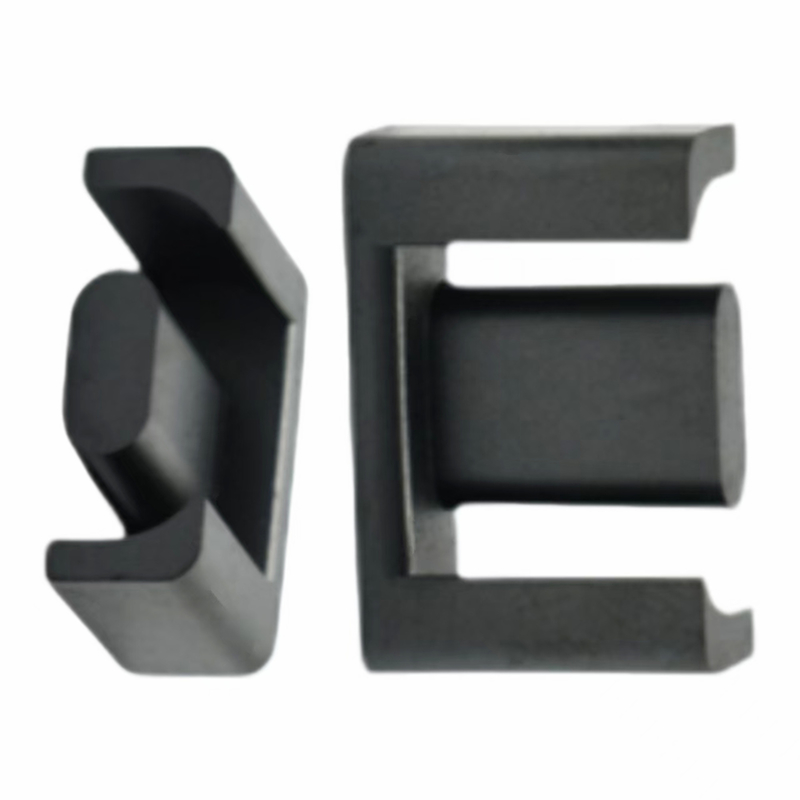

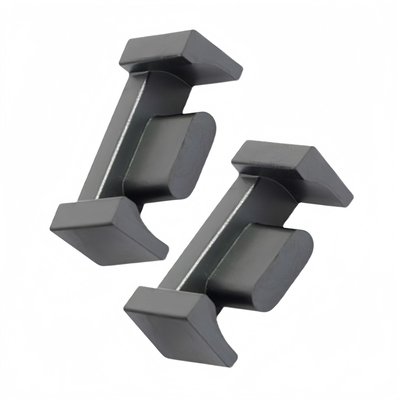

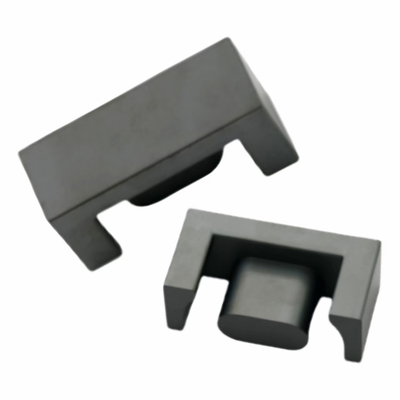

The EPC type Mn-Zn power core has the following advantages:
Low Loss: At the operating frequency, the EPC type Mn-Zn power core has low loss and generates less heat. This means that under the same operating conditions, it can utilize electrical energy more effectively, reduce energy loss, and thereby improve the overall efficiency of the equipment.
Wide Operating Frequency Band: The EPC type Mn-Zn power core has a wide operating frequency band, which can meet the application needs of different frequency ranges. This gives it broad application prospects in various electronic devices.
Reasonable Structure: The structure of the EPC type Mn-Zn power core is reasonably designed for easy installation and fixation. At the same time, it is small in size and light in weight, making it easy to integrate into various miniaturized electronic devices.
Good Shielding Effect: The EPC type Mn-Zn power core has good electromagnetic shielding effect, which can effectively reduce the impact of external electromagnetic interference on the equipment and improve the anti-interference ability of the equipment.
The application fields of the EPC type Mn-Zn power core include:
Precision Instrument Field: Such as medical instruments, measuring instruments, etc. These instruments have extremely high requirements for the stability and accuracy of the power supply, and the EPC type Mn-Zn power core can meet their needs.
Communication Field: Such as program-controlled exchange module power supplies, network communication equipment, etc. These devices need to process a large amount of data and signals, and have high requirements for the reliability and stability of the power supply.
Navigation Equipment Field: Such as satellite navigation systems, ship navigation systems, etc. These devices need to work stably in complex environments, and the EPC type Mn-Zn power core can provide stable power support for them.
Computer Terminal Output Field: Such as computer power supplies, monitor power supplies, etc. These devices have strict requirements on the volume, weight, and efficiency of the power supply, and the EPC type Mn-Zn power core can meet their lightweight and efficient needs.
Fig.1 Fig.2
| Specification | Figure | Dimension(mm) | Effective parameter | Inductor coefficient AL(nH/N2) | Weight | ||||||||||
| A | B | C | D1 | D2 | E1 | F | E2 | Ae(mm2) | Le(mm) | Ve(mm3) | BP44 | BP95 | (grams/pair) | ||
| EPC13 | 1 | 13.3±0.4 | 6.85±0.20 | 4.6±0.15 | 5.6±0.15 | 2.05±0.10 | 10.50 min | 4.75±0.20 | 8.30 min | 12.50 | 30.60 | 382.00 | 850±25% | 950±25% | 3.35 |
| EPC13.6 | 1 | 13.6±0.4 | 6.8±0.20 | 4.6±0.15 | 5.6±0.15 | 2.05±0.10 | 11.00 min | 4.7±0.20 | 9.00 min | 12.50 | 30.40 | 379.40 | 850±25% | 950±25% | 2.70 |
| EPC17 | 1 | 17.8±0.4 | 8.75±0.20 | 6.0±0.30 | 7.7±0.20 | 2.8±0.20 | 15.00 min | 6.25±0.20 | 12.30 min | 20.85 | 40.40 | 842.60 | 1150±25% | 1500±25% | 5.80 |
| EPC17V | 2 | 17.9±0.3 | 8.5±0.10 | 6.7±0.20 | 7.75±0.20 | 3.65±0.20 | 14.00 min | 5.55±0.15 | 10.80±0.30 | 29.05 | 37.08 | 1077.3 | 1750±25% | 2200±25% | 6.90 |
| EPC39.5 | 2 | 39.5±0.6 | 21.6±0.20 | 16.0±0.25 | 16.95±0.25 | 10.0±0.25 | 29±0.60 | 16.6±0.25 | 21.0±0.60 | 158.5 | 91.2 | 14455.2 | 4200±25% | 5000±25% | 95.50 |
| EPC46.5 | 3 | 17.9±0.3 | 8.5±0.10 | 6.7±0.20 | 7.75±0.20 | 3.65±0.20 | 37.5±0.7 | 15.5±0.20 | 30.2±0.30 | 216.3 | 100.20 | 21673.3 | 5800±25% | 7000±25% | 134.20 |
Note:
The test conditions for AL value are: 1KHz, 0.3V, and 10Ts
The above are the standard specifications of our company, and they can be designed according to the special requirements of customers.
